Pioneer Stereo Receiver Model SX-1080





Stereo Receiver Information:

Pioneer AM/FM stereo receiver model SX-1080. Rated at 120 watts per channel into 8 ohms. From 1979 - 1981. Features, tone controls, on/off two separate bass and treble controls, filters, mic input, two tape in/outputs one aux input and two phono inputs, phono two selector is also the mic selector, tape duplicator switch, FM muting, FM multipath, loudness on/off, turnover selector, both tuning and signal meters, also both right and left channel power watt meter. Neat receiver.



Specifications:


Power Output: 120 watts per channel RMS into 8 ohms
Harmonic Distortion: Less than 0.05%
Intermodulation Distortion: Less than 0.05%


FM Sensitivity: 1.7uV
FM Capture Ratio: 1.00
FM Harmonic Distortion Mono: <0.10%
FM Harmonic Distortion Stereo: <0.15%


Dimensions: 20.75 x 17.25 x 7.0
Weight:
47.00 lbs





Visit Pioneer Online

Website: http://www.pioneerelectronics.com

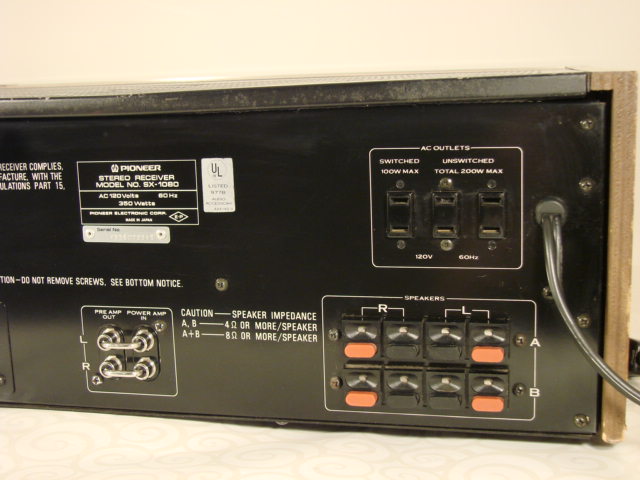

Pioneer Stereo Receiver Model SX-1080 Pictures
