Vintage Pioneer Stereo Receiver Model SX-1280



Pioneer Stereo Receiver Information

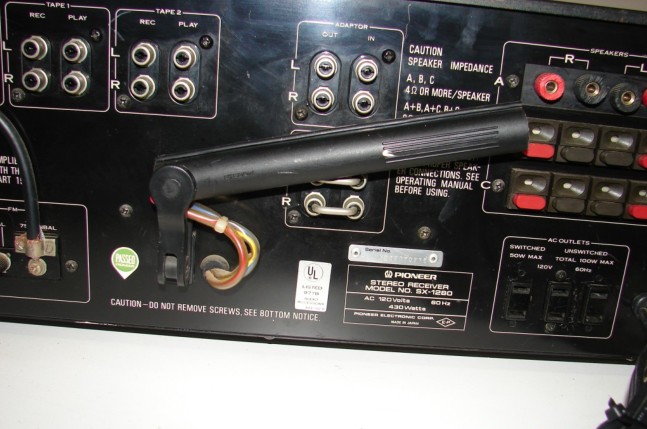

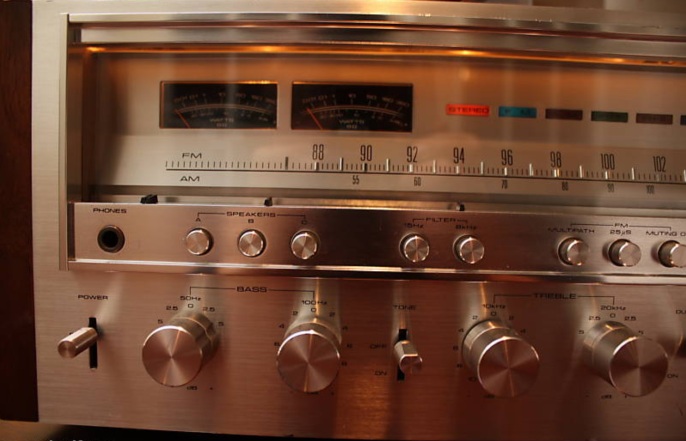

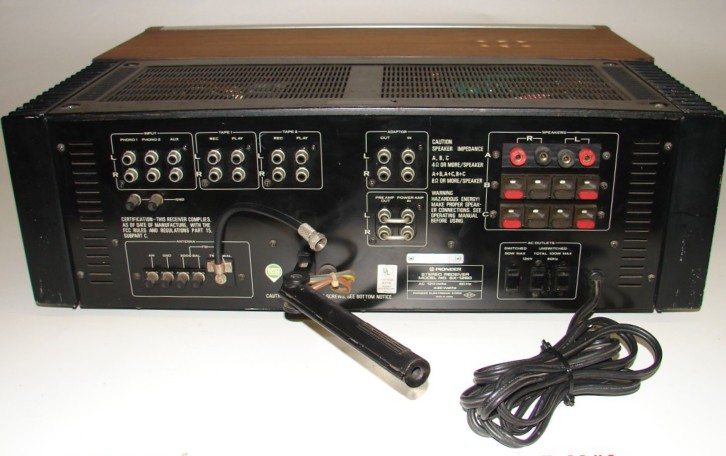

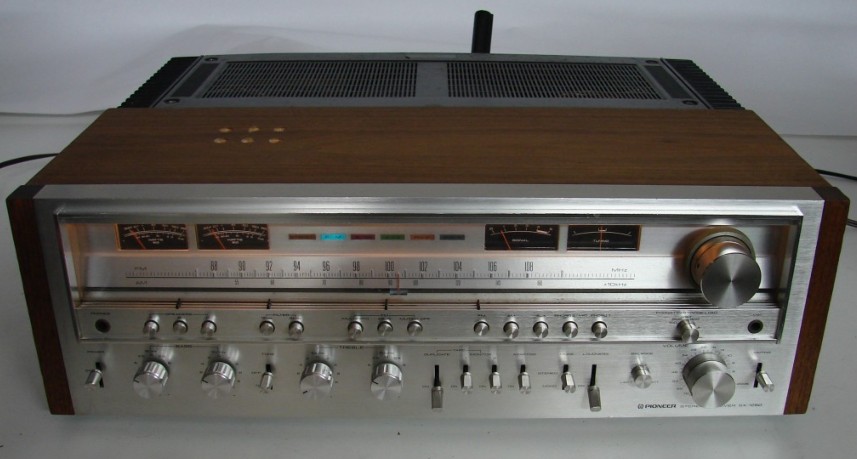

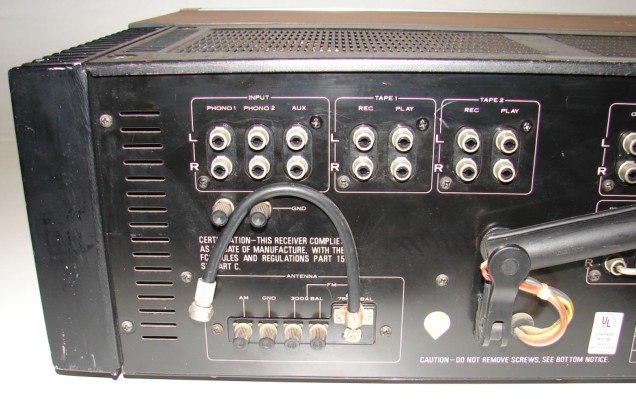

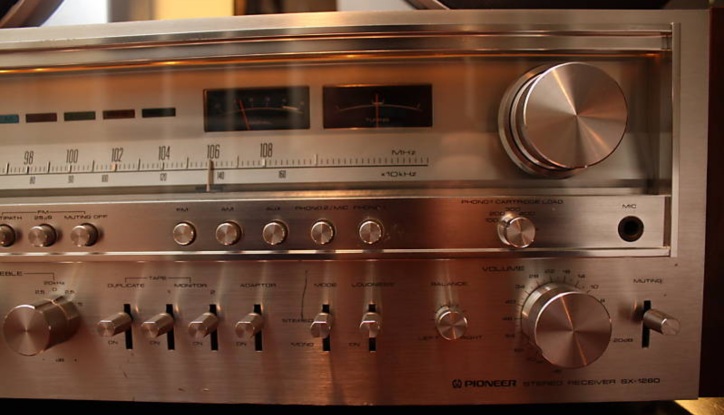

Pioneer AM/FM stereo receiver model SX-1280. Rated at 185 watts per channel. From 1978. Features, tone controls, on/off two separate bass and treble controls, filters, mic input, two tape in/outputs one aux input and two phono inputs, phono two selector is also the mic selector. Tape duplicator switch, phono selector for the right stylus and the best response, from your needle, Adaptor switch to add a equalizer etc. FM muting, FM multipath. Also features both tuning and signal meters, also both right and left channel power meters, which shows the watts the stereo is putting out.

A great monster receiver.



Specifications:

Power Output: 185 watts per channel RMS into 8 ohms.
Harmonic Distortion: Less than 0.03%
Intermodulation Distortion: Less than 0.01%


FM Sensitivity: 1.7uV
FM Capture Ratio: 1.00
FM Harmonic Distortion Mono: <0.10%
FM Harmonic Distortion Stereo: <0.15%




Dimensions: 22.00 x 18.25 x 7.50
Weight:
63.25 lbs
