Quasar VHS VCR Model VH5141XQ

VHS VCR Information:

Quasar VHS VCR model VH5141XQ. Panasonic made VHS VCR from the mid 1980s. Dated June 25, 1984. Same basic design as the Quasar VH5042XQ. but with less features. Features, 14 day/2 program timer, 107 channel electronic tuner, one touch recording, multi-function wireless remote control, direct drive capstan motor, auto rewind, noise free slow motion in SLP mode, centralized function display, noise free still and frame advance in SLP mode, electronic tape counter. These VCRS were slightly ahead of the times in that era. The function display being one of the best features. Many versions/manufactured brands under Panasonic, of these VCRS were being produced in that time, both top and front loading versions with basically the same electronics.

Common Problems: Power supply. The symptoms will start with many different malfunctions. To name a few, front display/clock/counter/functions starts to become dim in areas, eventually going out completely, VCR does not power on, distorted picture during playback. Power supply kits are available for most of these Panasonic made VCRS at Studio Sound Electronics located in the links section. Feel free to share your info about the common issues with these Panasonic built VCRS on the Forums.

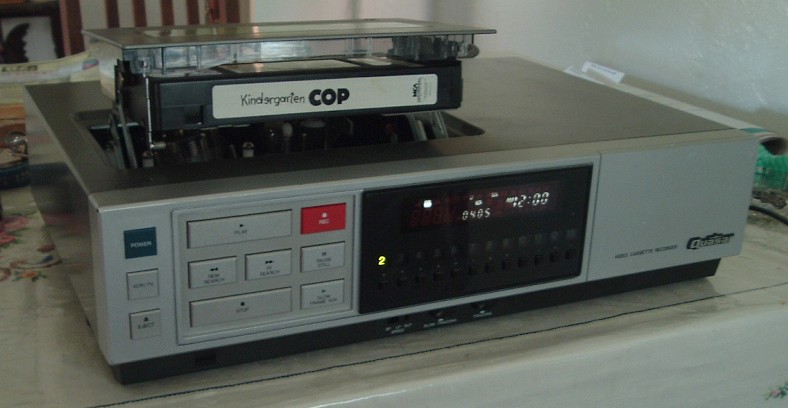

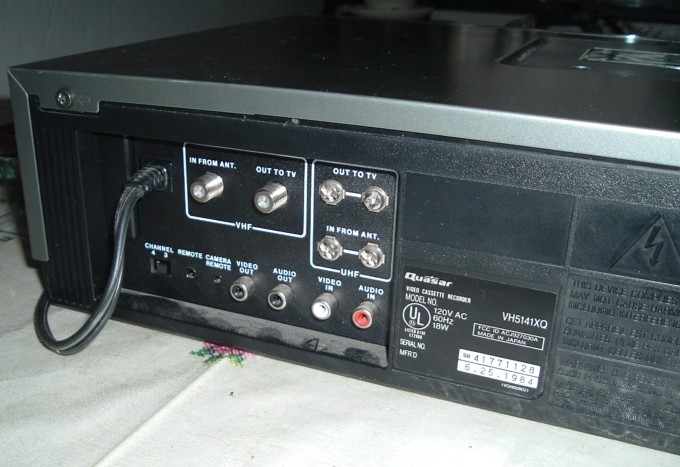

Quasar VHS VCR Model VH5141XQ Pictures
